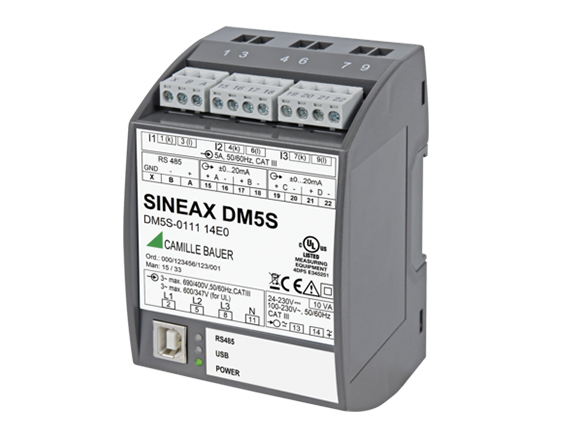

高精度大电流变送器 SINEAX DM5系列

SINEAX DM5S and SINEAX DM5F are free-programmable universal measurement devices for heavy-current systems: Classical high-accuracy transducer, suited for monitoring tasks and retrofit applications in energy distribution and industry.

The devices can be adapted fast and easily to the measurement task by means of the CB-Manager software – even if there is no power supply available. Depending on the device version measured quantities can be mapped proportionally to analog DC current outputs or to Modbus.

The measurement is done uninterrupted in all four quadrants and can be adapted optimally to the system to be monitored. Both the average time of the measurement and the expected maximum signal level can be configured.

Commissioning is very easy and is supported by means of service functions, such as nameplate printing, connection check, measurement acquisition as well as simulation and trimming of the analog outputs.

• System state monitoring: class 0.2

• All-purpose: V/I, P/Q/S, f, PF etc.

• Remote communication via Modbus

• DM5S: Energy metering: class 0.5S

• DM5F: Response time 15…25ms

• Assisted commissioning

• Configuration even without power supply

• Certifications: UL

Accessories

• USB-Cable + Docu-CD (incl. software CB-Manager)
